Welding Stainless Steel Sanitary Check Valve
manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
E-mail: sales@1bengfa.com
Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072（WeChat Same Account）
product drawing
Welding stainless steel sanitary check valves
materials：SUS304、SUS316L
pipe flow control：DN25-150 and 1"-6" are applied to stainless steel pipe systems
connecting mode: thread, welding ,quick-installation, flange wafer type.
Dimensions & constructral diagram

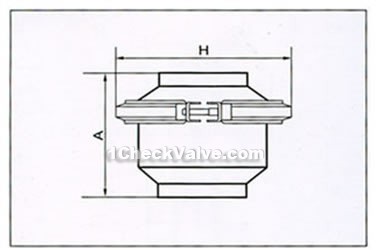

Welding stainless steel sanitary check valve constructral diagram
| Specification DN | A | H | Specification ISO | A | H |
| 23 | 62.5 | 82 | 25 | 62.5 | 82 |
| 32 | 75 | 95.5 | 38 | 75 | 95.5 |
| 40 | 75 | 95.5 | 51 | 87.5 | 109 |
| 50 | 87.5 | 109 | 63.5 | 95 | 137 |
| 65 | 95 | 137 | 76.1 | 115 | 148 |
| 80 | 115 | 148 | 101.6 | 155 | 164 |
| 100 | 155 | 164 |
