Wafer Double Disc Butterfly Check Valve

manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
E-mail: sales@1bengfa.com

Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072（WeChat Same Account）

product drawing

Wafer double disc butterfly check valves
Wafer double disc butterfly check valves

Usages and structural features

Wafer double disc butterfly check valve is suitable for various pipelines of nominal pressure PN1.0MPa ~ 42.0MPa, CLASS150Lb ~ 2500Lb; Nominal diameter DN15mm ~ 1200mm, NPS1 / 2 "~ 48"; working temperature-196C ~ 540C. it is used to prevent medium backflow. Through the selection of different materials, the valve is applicable to water, steam, oil, nitric acid, strong oxidizing medium and urea and other media. The main features are:
1.the face to face dimension is short, is only 1/4-1/8 of the traditional flange check valve.
2.small size, light weight, the weight is only 1/4-1/20 of the traditional flange check valve
3.the disc closure is fast, the water hammer pressure is small
4.horizontal pipe and vertical pipe can both use the valve, and it is easy to install;
5.the flow pipes are unobstructed, the flow resistance is small
6.Action is sensitive, and sealing performance is good;
7.the disc stroke is short, and the impact force is small
8.the whole structure is simple and compact, with beautiful shape
9.Long service life with high reliability.

Standard and specifications

1.design and manufacture：AP1594.API6D.JB/T8937
2.face to face dimension：API594.API6D.DIN3202.JB/T8937；
3.pressure and temperature class：ANSI B 16.34.DIN2401.GB/T9124.HG20604.HG20605.SH3406.JB/T74
4.test and inspection：API598.JB/T9092
5.matched flange：JB/T74-90.GB/T9112-9124.HG20592-20635.SH3406.ANSIB16.5.DIN2543-2548.GB/T 13402. API605.ASMEB16.47.

Dimensions & constructral diagram

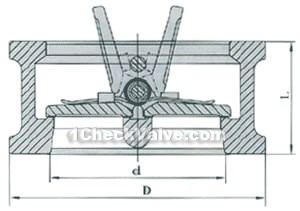

Wafer double disc butterfly check valve constructral diagram
Wafer double disc butterfly check valve constructral diagram

Performance and specification, materials of main parts

nominal pressure type
the material of main parts body WCB ZG1Gr-18Ni9Ti CF8 CF3 ZG1Gr-18Ni12Mo2Ti CF8M CF3M
disc,
seat,
spring 		2Cr13 1Gr18Ni9Ti 0Gr18Ni9(304) 00Gr18Ni10(304L) 1Gr18Ni-12Mo2Ti 0Gr18Ni12-Mo2(310) 00Gr17Ni14-Mo2(316L)
applicable conditions applicable medium water,
steam,
oil,etc 		nitric acid and other corrosive media strong oxidizing medium acetic acid and other corrosive media urea and other corrosive media
working temperature ℃ ≤450 ≤200

Main dimensions and weight of H76 series

pressure class diameter dimensions （mm） weight matched flange（reference）
NPS DN L D D3 D2 (㎏) Bolt hole center circle diameter D1 bolt quantity bolt diameter d bolt major diameter L1
in mm RF RJ
Class 150 PN 2.0MPa 2 50 60 103 56 51 2 120.5 4 5/8 M16 140 155
2 1/2 65 67 122 73 65 3 139.5 4 5/8 M16 150 165
3 80 73 135 88 80 4 152.5 4 5/8 M16 160 175
4 100 73 173 108 102 6 190.5 8 5/8 M16 170 185
5 125 86 195 132 127 8 216.0 8 3/4 M20 190 205
6 150 98 220 160 152 13 241.5 8 3/4 M20 205 220
8 200 127 277 210 203 25 298.5 8 3/4 M20 240 255
10 250 146 337 266 254 39 362.0 12 7/8 M24 270 285
12 300 181 407 310 305 54 432.0 12 7/8 M24 310 325
14 350 184 448 355 350 80 476.0 12 1 M27 325 340
16 400 191 512 405 400 117 540.0 16 1 M27 340 355
18 450 203 547 455 450 138 578.0 16 1 1/8 M30 365 380
20 500 219 604 505 500 163 635.0 20 1 1/8 M30 385 400
24 600 222 715 605 600 331 749.5 20 1 1/4 M33 405 420
28 700 305 773 700 700 380 795.5 40 3/4 M20 455 -
30 750 305 824 750 746 425 846.0 44 3/4 M20 455 -
32 800 305 878 800 796 560 900.0 48 3/4 M20 460 -
36 900 368 983 910 898 640 1009.5 44 7/8 M24 540 -
42 1050 432 1142 1055 1050 960 1171.5 48 1 M27 625 -
48 1200 524 1302 1205 1200 1400 1335.0 44 1 1/8 M30 740 -
Class 300Lb PN 5.0MPa 2 50 60 110 58 51 3 127.0 8 5/8 M16 155 175
2 1/2 65 67 128 73 65 4 149.0 8 3/4 M20 175 195
3 80 73 147 88 80 6 168.5 8 3/4 M20 190 210
4 100 73 179 108 102 8 200.0 8 3/4 M20 195 215
5 125 86 214 132 127 15 235.0 8 3/4 M20 215 235
6 150 98 249 160 152 18 270.0 12 3/4 M20 230 250
8 200 127 305 210 203 31 330.0 12 7/8 M24 280 300
10 250 146 359 266 254 51 287.5 16 1 M27 315 335
12 300 181 420 310 305 77 451.0 16 1 1/8 M30 365 385
14 350 222 483 355 350 117 514.5 20 1 1/8 M30 410 430
16 400 232 537 405 400 190 571.5 20 1 1/4 M33 435 455
18 450 264 594 455 450 200 628.5 24 1 1/4 M33 475 495
20 500 292 652 505 500 265 686.0 24 1 1/4 M33 510 535
24 600 318 772 608 600 410 813.0 24 1 1/2 M39 560 585
30 750 368 882 740 735 660 921.0 36 1 3/8 M36 650 -
36 900 483 1044 880 873 1020 1089.0 32 1 5/8 M42 800 -
42 1050 568 1196 1045 1035 1540 1244.5 36 1 3/4 M45 920 -
48 1200 629 1365 1190 1179 2260 1416.0 40 1 7/8 M48 1010 -

Main dimensions and weight of H76 series

pressure class diameter dimensions （mm） weight matched flange（reference）
NPS DN L D D3 D2 (㎏) Bolt hole center circle diameter D1 bolt quantity bolt diameter d bolt major diameter L1
in mm RF RJ
Class 600Lb PN 11.0 MPa 2 50 60 110 58 51 4 127.0 8 5/8 M16 175 180
2 1/2 65 67 128 73 65 5 149.0 8 3/4 M20 195 200
3 80 73 147 88 80 8 168.5 8 3/4 M20 210 215
4 100 79 191 108 102 11 216.0 8 7/8 M24 235 240
5 125 105 239 136 127 20 267.0 8 1 M27 280 285
6 150 136 264 162 152 26 292.0 12 1 M27 320 325
8 200 165 318 212 200 55 349.0 12 1 1/8 M30 370 375
10 250 213 398 266 250 95 432.0 16 1 1/4 M33 440 445
12 300 229 455 312 305 140 489.0 20 1 1/4 M33 460 465
14 350 273 490 355 337 223 527.0 20 1 3/8 M36 520 525
16 400 305 562 400 387 360 603.0 20 1 1/2 M39 575 580
18 450 362 610 450 438 395 654.0 20 1 5/8 M42 650 655
20 500 368 680 500 489 518 724.0 24 1 5/8 M42 670 680
24 600 438 786 600 591 836 838.0 24 1 7/8 M48 780 790
Class 900Lb PN 15.0 MPa 2 50 70 140 58 51 8 165.0 8 1 7/8 M24 225 230
2 1/2 65 83 162 73 65 11 190.5 8 1 M27 250 255
3 80 83 165 90 80 14 190.5 8 7/8 M24 240 245
4 100 102 204 108 102 20 235.0 8 1 1/8 M30 285 290
5 125 110 245 136 127 30 279.5 8 1 1/4 M33 310 315
6 150 159 286 162 150 42 317.5 12 1 1/8 M30 365 370
8 200 206 356 212 200 84 393.5 12 1 3/8 M36 440 445
10 250 241 432 266 250 145 470.0 16 1 3/8 M36 490 495
12 300 2962 495 312 305 220 533.5 20 1 3/8 M36 560 565
14 350 356 518 355 337 350 559.0 20 1 1/2 M39 645 655
16 400 384 572 400 387 470 616.0 20 1 5/8 M42 685 695
18 450 451 635 450 438 605 686.0 20 1 7/8 M48 790 805
20 500 451 695 496 487 820 749.5 20 2 M52 810 825
24 600 495 835 600 591 1050 901.5 20 2 1/2 M64 945 965
Class 1500Lb PN 26.0 MPa 2 50 70 140 58 51 8 165.0 8 7/8 M24 225 230
2 1/2 65 83 162 73 65 11 190.5 8 2 M27 250 255
3 80 83 172 90 80 19 203.0 8 1 1/8 M30 240 275
4 100 102 207 108 102 26 241.5 8 1 1/4 M33 310 315
5 125 110 252 136 127 51 292.0 8 1 1/2 M39 370 375
6 150 159 280 162 150 68 317.5 12 1 3/8 M36 430 440
8 200 206 350 212 200 130 393.5 12 1 5/8 M42 510 520
10 250 248 433 266 254 210 482.5 12 1 7/8 M48 600 610
12 300 305 518 312 305 384 571.5 16 2 M52 695 715
14 350 356 576 355 337 550 635.0 16 2 1/4 M56 775 800
  16 400 384 639 400 387 635 705.0 16 2 1/2 M64 850 880

Main dimensions and weight of H76 series

pressure class diameter dimensions （mm） weight matched flange（reference）
NPS DN L D D3 D2 (㎏) Bolt hole center circle diameter D1 bolt quantity bolt diameter d bolt major diameter L1
in mm RF RJ
Class 2500Lb PN 42.0 MPa 2 50 70 143 48 42 10 171.5 8 1 M27 255 260
2 1/2 65 83 166 58 52 18 197.0 8 1 1/8 M30 290 305
3 80 86 194 68 62 26 228.5 8 1 1/4 M33 320 330
4 100 105 232 94 88 40 273.0 8 1 1/2 M39 370 380
5 125 110 277 106 100 59 324.0 8 1 3/4 M45 420 435
6 150 159 315 162 150 90 368.5 8 2 M52 515 530
8 200 206 385 186 180 150 438.0 12 2 M52 600 620
10 250 254 474 232 225 240 539.5 12 2 1/2 M64 750 775
12 300 305 547 272 266 440 619.0 12 2 3/4 M70 855 885

Main dimensions and weight of H76 series

nominal pressure PN MPa nominal diameter DN mm dimensions (mm) weight (㎏) matched flange（reference）
L D D3 D2 Bolt hole center circle diameter D1 bolt quantity bolt diameterd bolt length L1
PN 1.0MPa 50 60 108 56 51 2 125 4 M16 150
65 67 128 73 65 3 145 4 M16 155
80 73 142 88 80 4 160 8 M16 160
100 73 162 108 102 6 180 8 M16 165
125 86 192 132 127 8 210 8 M16 180
150 98 218 160 152 13 240 8 M20 205
200 127 273 210 203 24 295 8 M20 235
250 146 328 266 254 37 350 12 M20 255
300 181 378 310 305 50 400 12 M20 290
350 184 438 355 350 76 460 16 M20 295
400 191 489 405 400 110 515 16 M24 310
450 203 539 455 450 135 565 20 M24 325
500 219 594 505 500 158 620 20 M24 345
600 222 696 605 600 320 725 20 M27 355
700 305 811 700 695 380 840 24 M27 440
800 305 918 800 796 560 950 24 M30 450
900 368 1018 903 898 640 1050 28 M30 520
1000 432 1124 1055 1050 900 1160 28 M33 590
1200 524 1340 1205 1200 1400 1380 32 M36 695
PN 1.6MPa 50 60 108 56 51 2 125 4 M16 150
65 67 128 73 65 3 145 4 M16 155
80 73 142 88 80 4 160 8 M16 160

Main dimensions and weight of H76 series

nominal pressure PN MPa nominal diameter DN mm dimensions (mm) weight (㎏) matched flange（reference）
L D D3 D2 Bolt hole center circle diameter D1 bolt quantity bolt diameter d bolt length L1
PN 1.6MPa 100 73 162 108 102 6 180 8 M16 165
125 86 192 132 127 8 210 8 M16 180
150 98 218 160 152 13 240 8 M20 205
200 127 273 210 203 24 295 12 M20 235
250 146 329 266 254 37 355 12 M24 265
300 181 384 310 305 50 410 12 M24 305
350 184 444 355 350 76 470 16 M24 310
400 191 496 405 400 110 525 16 M27 330
450 203 556 455 450 135 585 20 M27 345
500 219 618 505 500 158 650 20 M30 370
600 222 732 605 600 320 770 20 M33 380
700 305 802 700 695 380 840 24 M33 470
800 305 912 800 796 560 950 24 M36 475
900 368 1012 903 898 640 1050 28 M36 545
1000 432 1126 1055 1050 900 1170 28 M39 620
1200 524 1340 1205 1200 1400 1390 32 M45 735
PN 2.5MPa 50 60 108 56 51 2 125 4 M16 150
65 67 128 73 65 3 145 8 M16 160
80 73 142 88 80 4 160 8 M16 170
100 73 168 108 102 6 190 8 M20 180
125 86 194 132 127 8 220 8 M24 205
150 98 224 160 152 14 250 8 M24 220
200 127 284 210 203 27 310 12 M24 255
250 146 341 266 254 42 370 12 M27 285
300 181 401 310 305 54 430 16 M27 325
350 184 458 355 350 86 490 16 M30 340
400 191 515 405 400 120 550 16 M33 360
450 203 565 455 450 148 600 20 M33 375
500 219 622 505 500 165 660 20 M33 395
600 222 732 605 600 340 770 20 M36 410
700 305 831 700 695 400 875 24 M39 500
800 305 942 800 796 580 990 24 M45 520
900 368 1040 903 898 660 1090 28 M45 590
1000 432 1155 1055 1050 960 1210 28 M52 675
1200 524 1365 1205 1200 1440 1420 32 M52 790

Main dimensions and weight of H76 series

nominal pressure PN MPa nominal diameter DN mm dimension (mm) weight (㎏) matched flange（reference）
L D D3 D2 Bolt hole center circle diameter D1 bolt quantity bolt diameter d bolt length L1
RF、MFM RJ
PN 1.6MPa 50 60 108 58 51 3 125 4 M16 150 -
65 67 128 73 65 4 145 8 M16 160 -
80 73 142 88 80 6 160 8 M16 170 -
100 73 168 108 105 8 190 8 M20 180 -
125 86 194 132 127 13 220 8 M24 205 -
150 98 224 160 152 16 250 8 M24 220 -
200 127 291 210 203 28 320 12 M27 270 -
250 146 353 266 254 49 385 12 M30 300 -
300 181 418 310 305 76 450 16 M30 345 -
350 222 475 355 350 114 510 16 M33 400 -
400 232 547 405 400 190 585 16 M36 425 -
450 264 572 455 450 200 610 20 M36 470 -
500 292 626 505 500 260 670 20 M39 505 -
600 318 745 608 600 404 795 20 M45 575 -
PN 6.3MPa 50 60 114 58 51 4 135 4 M20 170 185
65 67 138 73 65 5 160 8 M20 180 195
80 73 148 88 80 7 170 8 M20 190 205
100 79 174 108 102 10 200 8 M24 210 225
125 105 211 132 127 16 240 8 M27 250 265
150 136 248 162 152 20 280 8 M30 290 305
200 165 310 212 200 38 345 12 M33 335 350
250 213 362 266 250 62 400 12 M33 395 410
300 229 422 310 305 100 460 16 M33 420 435
350 273 487 355 350 160 525 16 M36 480 495
400 305 541 405 400 260 585 16 M39 525 540
PN 10.0 MPa 50 60 120 58 51 5 145 4 M24 182 200
65 67 144 73 65 7 170 8 M24 195 210
80 73 154 88 80 10 180 8 M24 205 220
100 79 181 108 102 12 210 8 M27 225 240
125 105 218 132 127 19 250 8 M30 265 280
150 136 258 162 152 25 290 12 M30 305 320
200 165 324 212 200 56 360 12 M33 355 370
250 213 392 2663 250 94 430 12 M36 425 440
300 229 456 12 305 142 500 16 M39 465 480
350 273 510 355 350 230 560 16 M45 535 550
400 305 570 405 400 366 620 16 M45 585 600

Main dimensions and weight of H76 series

nominal pressure PN MPa nominal diameter DN mm dimensions (mm) weight (㎏) matched flange（供参考reference）
L D D3 D2 Bolt hole center circle diameter D1 bolt quantity bolt diameter d bolt length L1
RF、MFM RJ
PN 16.0 Mpa (JB/T 74-90) 50 70 142 56 51 8 165 8 M22 205 220
65 83 162 73 65 11 190 8 M27 245 260
80 83 176 90 80 16 205 8 M27 250 265
100 102 208 108 102 19 240 8 M30 280 295
125 110 247 136 127 33 285 8 M36 335 350
150 159 280 162 150 40 318 12 M36 385 405
200 206 356 212 203 84 400 12 M42 470 490
250 241 435 266 250 146 485 12 M48 535 555
300 292 520 312 305 230 570 16 M48 610 640
PN 16.0 Mpa (GB/T 9112～9124、HG20592 ～20614) 50 70 120 56 51 7 145 4 M24 210 225
65 83 144 73 65 10 170 8 M24 235 250
80 83 154 90 80 14 180 8 M24 245 260
100 102 181 108 102 17 210 8 M27 280 295
125 110 218 136 127 28 250 8 M30 305 320
150 159 258 162 152 36 290 12 M30 365 395
200 206 325 212 203 78 360 12 M33 425 445
250 241 389 266 254 130 430 12 M39 495 515
300 292 459 312 305 210 500 16 M39 570 600
PN 20.0 Mpa (HG20592 ～20614) 50 70 136 56 51 8 160 8 M22 215 230
65 83 174 73 65 16 203 8 M27 255 270
80 83 198 90 80 22 230 8 M30 270 285
100 102 254 108 102 35 292 8 M36 330 345
125 110 280 136 127 50 318 12 M36 355 375
150 159 316 162 152 78 360 12 M42 430 450
200 206 390 212 203 120 440 12 M48 510 530
250 248 518 266 254 220 572 16 M52 595 625
PN 25.0 Mpa (HG20592 ～20614) 50 70 124 56 51 8 150 8 M24 215 230
65 83 154 73 65 14 180 8 M24 235 250
80 83 171 90 80 20 200 8 M27 250 265
100 102 203 108 102 28 235 8 M30 290 305
125 110 243 136 127 44 275 12 M30 310 325
150 159 285 162 152 70 320 12 M33 385 405
200 206 359 212 203 110 400 12 M39 470 490
250 248 443 266 254 200 490 16 M45 560 580
300 305 540 312 305 350 590 16 M48 665 695
Note: 1. different flange standards have some differences in their sizes, so matched flange bolt diameter d, bolt length L, and other dimensions are only for reference. In this table the matched flange sizes are mainly according to JB/T74-90 standard series two.
2. RF means male flange; MFM means female flange; RJ means ring
Shanghai MeiYan Yi Pump & Valve Co., Ltd.
MeiYan Yi check valve Contact MeiYan Yi
Shanghai Enine Pump & Valve Co., Ltd.
Enine check valve Contact Enine
Shanghai Saitai Pump & Valve CO., Lid.
Saitai Check Valve Contact Saitai
Shanghai FengQi Industrial Development CO., Lid.
FengQi Check Valve Contact FengQi
